Aluprof
MB-SLIMLINE

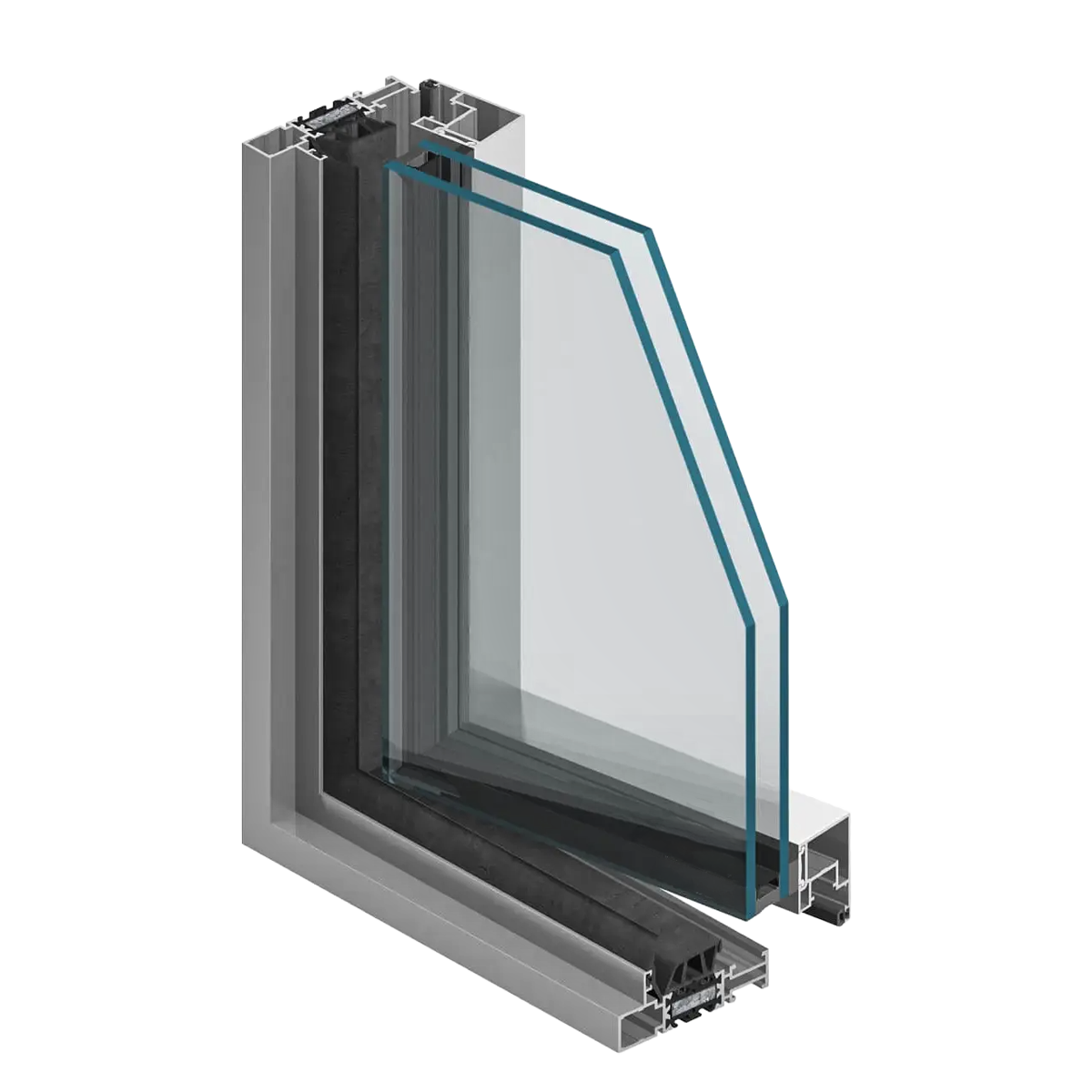

Slim-profile thermally broken aluminum window system with hidden sash — fixed and operable units appear virtually identical. Steel-inspired design suited to both heritage renovations and modern residential projects.
Overview
| Metric | Imperial | |
|---|---|---|
| Uw from | 0.8 W/m²K | 0.14 BTU/h·ft²·°F |
| Frame depth | 104.5 mm | 4-1/8" |
| Frame + sash depth | 113.5 mm | 4-1/2" |
| Glazing capacity | up to 72 mm | 2-3/4" |
| Air permeability | Class 4 | EN 12207 |
| Water tightness | E4800 | EN 12208 |
| Wind load | CE3330 | EN 12210 |
| Acoustic | Rw 42 dB |
Dimensions
| Metric | Imperial | |
|---|---|---|
| Frame depth | 104.5 mm | 4-1/8" |
| Frame + Sash | 113.5 mm | 4-1/2" |
| Glazing — fixed | 30 – 72 mm | 5/8" – 2-3/4" |
| Glazing — operable | 39 – 81 mm | 1-1/2" – 3-1/8" |
| Max window | 2,400 × 1,400 mm | 7'-10" × 4'-7" |
| Max sash weight | 150 kg | 330 lbs |
